From Metal 3D Printing to Finished Mold Insert — In-House, 7-Day Delivery
Get a Free QuoteMost mold quality problems are attacked at the wrong stage. We solve them at all three stages — before, during, and after molding.
3D-printed mold inserts with channels that follow part geometry. Eliminate hot spots, gate burn marks, and warpage at the source — before they happen.
Real-time cavity monitoring detects abnormal shots before they reach the next stage. Catch short shots, flash, and sticking automatically — no operator needed.
Automated optical inspection sorts good parts from defective ones at line speed. Replaces manual visual inspection — faster, more consistent, fully documented.
Metal 3D printing, conformal cooling mold inserts, CNC / EDM / WEDM machining, vision inspection systems, and injection molding production. Prototype samples or full production runs — all in one factory.
3D-printed mold inserts with cooling channels that follow your part geometry. Up to 72% faster cycles, gate burn marks eliminated.
Learn More →Injection mold cores, cavities, slides, and sprue bushings in tool steel. Up to 55 HRC. SPI-A1 capable for transparent products.
Learn More →Metal SLM/DMLS/LPBF in 420 steel, 18Ni300, and more. Plus plastic 3D printing for functional prototypes and product models. Design → print → finish → ship.
Learn More →3D printed dies and inserts for injection molding and die casting. Complex internal features impossible with conventional machining.
Learn More →Metal or plastic — from a single prototype sample (打板) to full production runs (大货). One factory handles it all: 3D printing, injection molding, CNC machined metal parts.
Learn More →Plastic injection molding for consumer and industrial parts. CNC machining centers for metal components. No minimum order. Scale from samples to mass production.
Learn More →Complete in-house manufacturing — CNC milling, sinker EDM, wire-cut EDM, plastic injection molding, and metal machining. Prototype samples to full production runs.
Learn More →CCD camera inspection systems for pass/fail detection — free sample evaluation, custom solution design. Mold monitoring systems with large stock available for fast delivery.

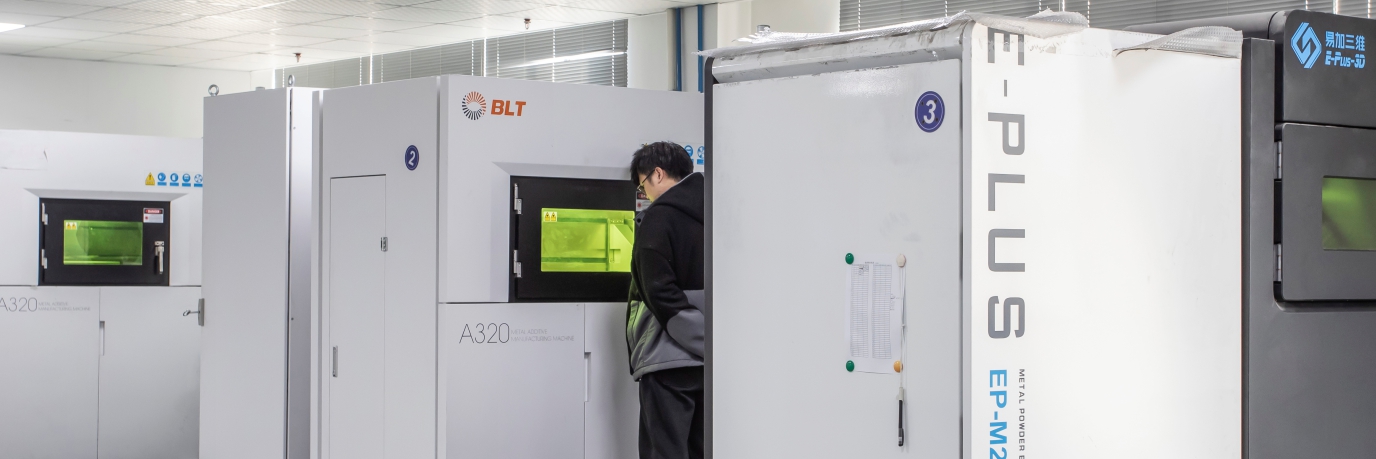

Learn More →3 SLM machines on-site. BLT A320 and E-Plus EP-M2. Located in Yuyao, Ningbo — China's manufacturing heartland.

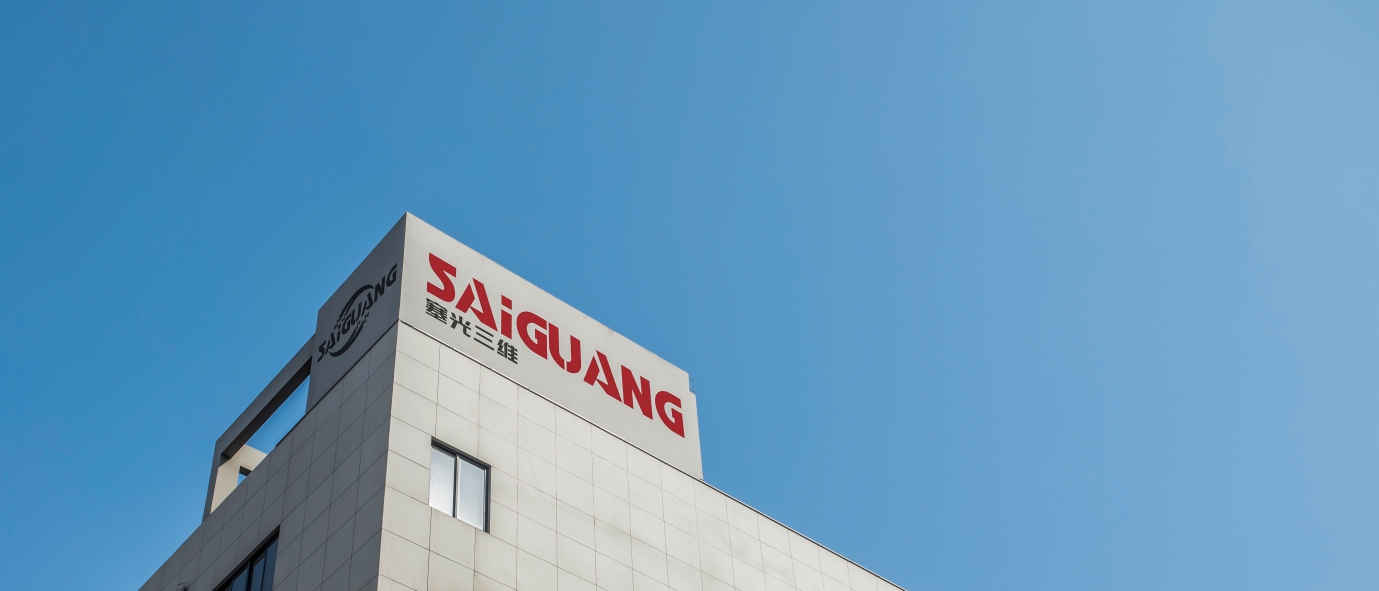

Factory production floor — Yuyao, Ningbo

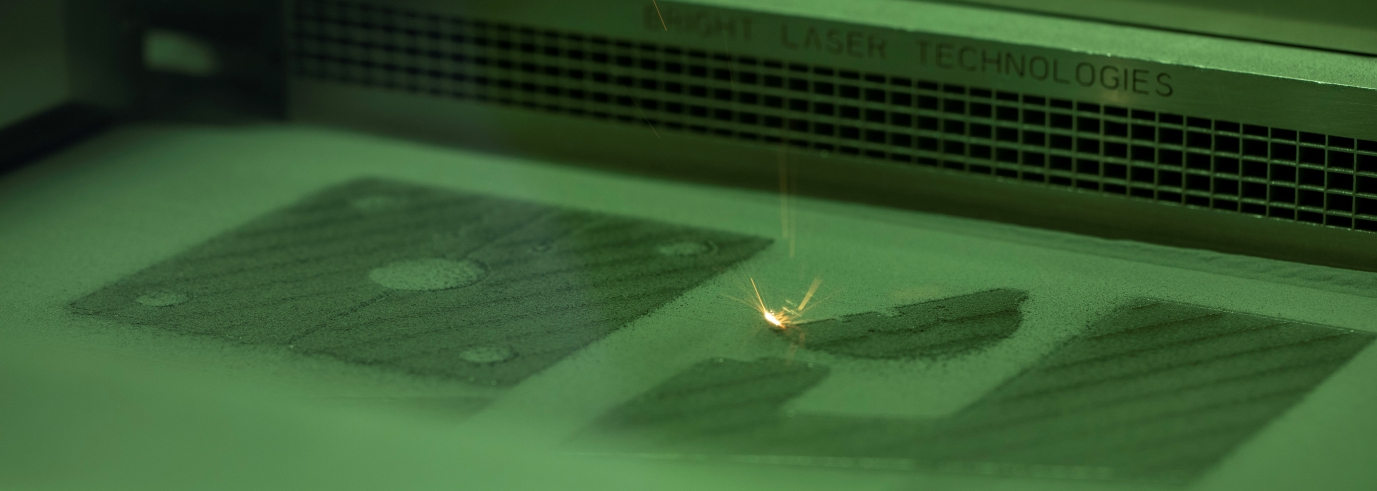

Metal 3D printing machines in operation
When straight cooling channels can't reach the hottest areas of your mold, cycle times suffer, parts warp, and gate burn marks appear. Conformal cooling — only achievable through metal 3D printing — solves this at the source.
Cooling channels follow your exact part geometry — not just straight lines
Uniform heat extraction from all surfaces simultaneously
Eliminates gate burn marks on PETG, MS, and transparent plastics
Compatible with hot runner systems
Consistent cooling extends mold insert service life
Source: Cosmetics packaging case study. Results vary by application.
View All 13 Case Studies →We review your CAD (NX / SolidWorks) and optimize for additive manufacturing. Cooling channels designed in Moldex3D simulation before printing.
Magics + BP software. Support structures designed for minimal post-processing and maximum dimensional accuracy.
SLM on BLT A320 and E-Plus EP-M2 machines. 420 steel, 18Ni300, MS1, or M2 — layer by layer.
Stress relief + age hardening to achieve 50–55 HRC. Support structure removal.
Precision machining to final tolerances. Polishing up to SPI-A1 standard for transparent injection molded products.
Vision inspection, careful packing, global freight. Contact us on WhatsApp for lead time and shipping options.
| Material | Application | Hardness |
|---|---|---|
| 420 Mold Steel | General injection mold inserts | 50–52 HRC |
| 18Ni300 | High-performance, long-run molds | 52–55 HRC |
| MS1 | Standard mold inserts | 50–52 HRC |
| M2 | High-wear tooling | 53–55 HRC |
All materials meet SPI-A1 polishing standard — suitable for transparent injection molded products.
Every number below comes from a documented customer project — before and after conformal cooling.
21s → 6s cooling time. Part temp: 93°C → 60°C. Gate burn marks eliminated.
880 → 1,320 pcs/day. Mold temp: 62°C → 48°C. Unit cost: ¥13.6 → ¥10.
1,760 → 3,046 pcs/day. 45s → 26s cooling. Unit cost: ¥3.50 → ¥2.60.
Trusted by Leading Manufacturers
Conformal cooling uses 3D-printed cooling channels that follow the exact geometry of your mold cavity. Unlike conventional straight-drilled channels, this enables uniform heat extraction from all surfaces simultaneously — reducing cooling time by up to 72%. For example, a PETG bottle cap mold went from 21s to 6s cooling, and a Xiaomi humidifier mold increased output from 880 to 1,320 pieces/day.
We use 420 Mold Steel and 18Ni300 (Maraging Steel) for SLM-printed mold inserts. After heat treatment, parts achieve 50–55 HRC hardness. Surface finish can reach SPI-A1 (mirror polish), suitable for transparent products like PETG and PMMA.
Production takes 7–14 working days. We ship worldwide via DHL Express (3–5 days to Europe/US), FedEx, or sea freight. Total turnaround is typically 2–3 weeks from order to delivery.
Our prices are typically 50–70% lower than European metal 3D printing services. A conformal cooling insert costing €3,000–8,000 in Germany typically costs €800–2,500 with us, using equivalent materials and quality standards.
We operate 3 SLM machines (BLT A320 and E-Plus EP-M2), plus CNC milling centers, sinker EDM, wire-cut EDM, and injection molding machines. Our facility in Yuyao, Ningbo employs 35 people.
Yes — we are a full-service manufacturer. CNC milling, sinker EDM, wire-cut EDM, and plastic injection molding, all in-house. From prototype samples to full production runs, metal and plastic parts, no subcontracting.
In-depth technical guides written by our engineering team — so you understand exactly what you're getting and why it works.
How conformal channels outperform conventional cooling, which applications benefit most, and what cycle time reduction to realistically expect.
Read Guide →D/W/P/R parameter rules, channel geometry types, Reynolds number targets, and the 12-point pre-print checklist every insert needs before going into production.
Read Guide →Real cycle time data across automotive, electronics, and medical applications — with ROI payback calculations at different production volumes.
Read Guide →Send us your part drawing or describe your current cooling issue. We'll analyze your mold and respond within 24 hours.
